Ortofon Omega 1e

Ortofon Omega 1e

Regular price
$36.99
Sale price
$36.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

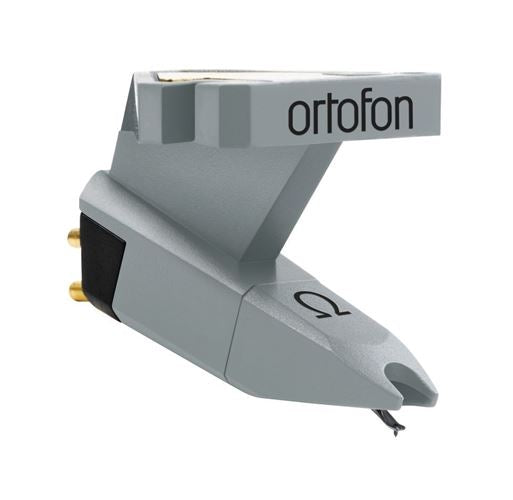

Ortofon OMEGA moving magnet cartridge

The Omega is a standard-mount cartridge for true high-fidelity sound reproduction.

It's a perfect match for standard USB turntables, fits a wide range of modern and vintage turntables. Omega uses a standard elliptical diamond and is a very reliable cartridge with a characteristic for Ortofon accurate sound.

The Omega provides upgraded sound quality in a cost-effective package.

Ortofon OMEGA Technical data

Output voltage at 1000 Hz, 5cm/sec - 4 mV
Channel balance at 1 kHzΒ  -Β  2 dB
Channel separation at 1 kHzΒ  - 22 dB
Channel separation at 15 kHzΒ  -Β  15 dB
Frequency responseΒ  -Β  20-21.000 Hz
Stylus typeΒ  -Β  Elliptical
Stylus tip radiusΒ  -Β  r/R 8/18 Β΅m

Tracking force range - 1,5-2,0 g (15-20 mN)
Tracking force, recommended - 1,75 g (17,5 mN)
Tracking angle - 20Β°
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistancΒ  - 47 kOhm
Cartridge weight - 5 g (additional weight incl.)
