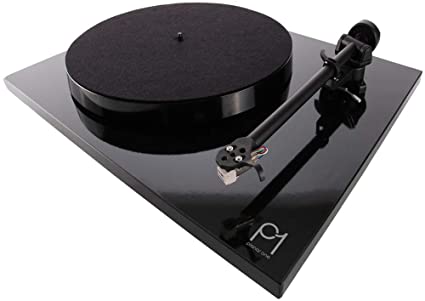

Rega Planar 1
Rega Planar 1
The new Planar 1 is the most user friendly Rega turntable to date. Now with preset bias force on the brand new RB110 tonearm, the Planar 1 is set up in seconds after unpacking. Simply slide the balance weight onto the rear of the tonearm as far as it will go, remove the stylus guard and start spinning your favourite vinyl.
Performance beyond price
Every single aspect of the Planar 1 has been meticulously designed to improve performance. For the first time the Planar 1 is now running a 24v, low noise, synchronous motor to reduce vibration transfer combined with our brand new RB110 tonearm fitted with Rega's bespoke zero play bearings. Only sharing the drive belt, sub platter and dust cover from the outgoing RP1, this is truly a new turntable from the ground up.
TONEARM
Brand new RB110 tonearm built with the new Rega designed, bespoke, ultra-low friction bearings (patent pending). New bias assembly and integrated arm clip. Includes automatic bias adjustment negating the need for the user to set bias, making this the most ‘plug & play’ turntable we have ever manufactured. New ergonomically, re-designed and stiffer headshell for improved usability and appearance.
CARTRIDGE
Rega Carbon cartridge supplied fitted as standard.
24 V SYNCHRONOUS MOTOR
The first entry-level Rega turntable to use a 24 V, synchronous AC motor with a new motor PCB and aluminium pulley offering low noise and better speed stability.
PLINTH
Brand new Thermoset, gloss laminated plinth with vastly improved appearance and new ergonomically positioned on/off switch located on the underside. Two stunning plinth finishes available, high gloss black and high gloss white.
CENTRAL BEARING HOUSING
Re-designed brass main bearing, offering improved fit and removing stress on the bearing itself whilst minimising the transfer of potential energy (patent pending).
PLATTER
Brand new, 23 mm, higher mass, phenolic platter with improved flywheel effect for improved speed stability.
RE-DESIGNED FEET
New improved feet to increase stability and reduce vibration transfer.
MOTOR COVER TRAY
New motor cover tray with integrated cooling.
BALANCE WEIGHT
New 111 g ‘plug & play’ balance weight.
TECHNICAL SPECIFICATIONS
- Tonearm
-
Hand assembled RB110 tonearm
- Cartridge
-
Factory fitted Carbon moving magnet cartridge
- Motor
-
24 V low noise motor
- Platter
-
Phenolic resin platter
- Dimensions (lid closed) (W x H x D)
-
447 x 117 x 360 mm
- Weight
-
4.2 kg
